OpenCAL is a new open-source volumetric 3D printing system that creates solid objects in seconds. By rotating a resin-filled cylinder and projecting light, it eliminates the need for traditional layer-by-layer additive manufacturing.
The 20-second space shuttle and the end of the Z-axis
Traditional 3D printing relies on a vertical Z-axis, where a nozzle or laser cures material in thin, sequential slices. This process often results in visible layer lines and structural weak points. OpenCAL disrupts this by using Computed Axial Lithography, a method that solidifies entire three-dimensional geometries simultaneously. In a recent demonstration of the portable rig , a fully formed miniature space shuttle was created in just 20 seconds.

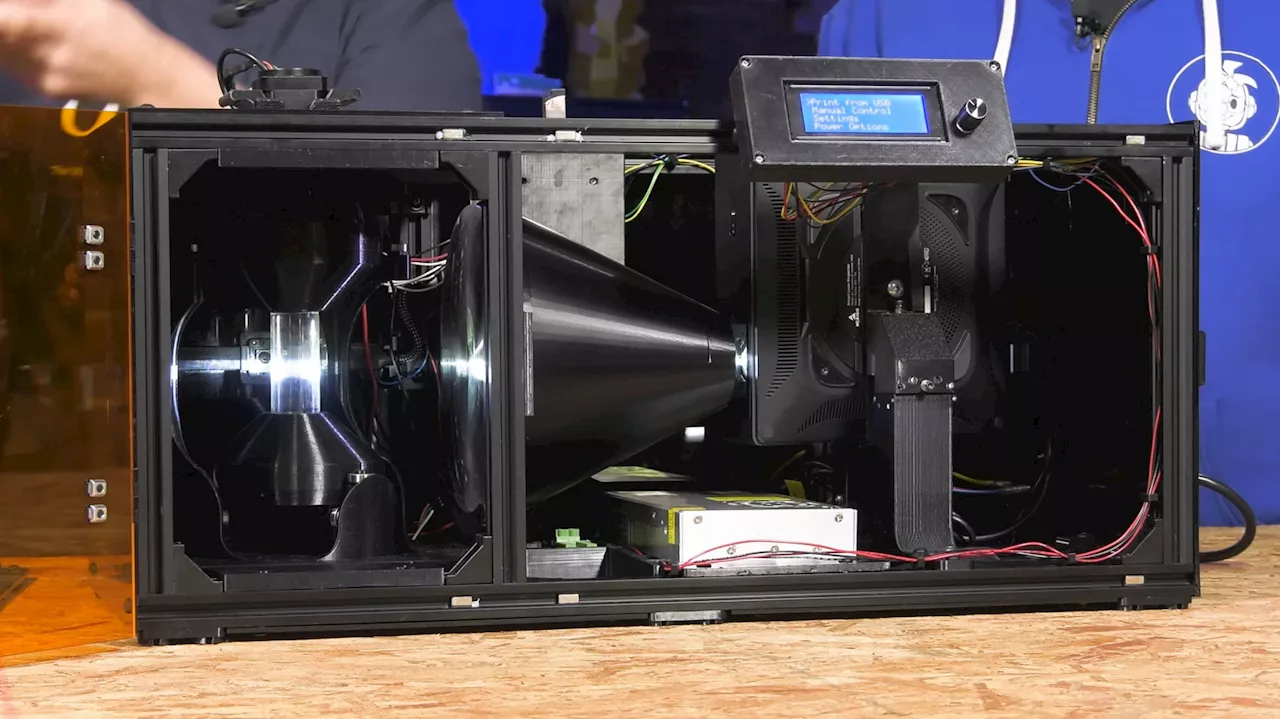

The system operates by rotating a glass cylinder filled with viscous resin while a compact projector beams 450-nanometer blue light through the liquid. as the container spins, the intersecting light patterns accumulate a specific radiation dose at predetermined coordinates, hardening the resin into a solid part in one go. According to the report, this approach removes the mechanical vulnerabilities typical of standard prints because the parts harden without sequential slicing.
A $1,400 build powered by Raspberry Pi and MP4s
While Computed Axial Lithography was previously confined to expensive university research laboratories, the OpenCAL project has condensed the technology into a build that fits inside standard checked luggage. The hardware relies on accessible components, including a Raspberry Pi single-board computer that manages the system and streams continuous MP4 video files to a blue laser projector.. This removes the need for the complex G-code translation required by most 3D printers.
The estimated cost for materials to build an OpenCAL printer is $1,400, with the laser projector representing the bulk of that expense. To ensure precision, the system utilizes a custom three-axis screw adjustment mount to lock the light precisely at the center of the rotating cylinder. As the source reported, the project's firmware is available for anyone to download via a GitHub repository.
Preventing 230-degree runaway reactions with Formlabs and MatterHackers
The chemistry behind volumetric printing introduces specific safety hazards that differ from standard plastic extrusion. The liquid photopolymer resins used in OpenCAL react exothermically during the curing process, generating moderate heat. However, if bulk resin vials are exposed to direct sunlight, they can trigger runaway chemical reactions that reach temperatures of 230 degrees Fahrenheit.
To mitigate these risks for home users, the OpenCAL project partnered with Formlabs and MatterHackers to distribute pre-mixed resins at cost. This partnership ensures that hobbyists do not have to handle volatile chemicals manually. Once a print is complete , operators use an isopropyl alcohol bath or high-speed rotational spinning to clean uncured resin before a final ultraviolet cure under natural sunlight.
Moving Computed Axial Lithography from the lab to checked luggage
The emergence of OpenCAL is part of a broader trend of "democratizing" high-end industrial tech. For years, the maker community has struggled with the trade-off between build speed and surface resolution, often spending hours waiting for a printer to lay down millimeter-thick plastic lines. By moving a laboratory-grade process into an open-source format, OpenCAL shifts the value proposition from "precision over time" to "instantaneous fabrication."
This move echoes previous shifts in the CNC and 3D printing worlds where proprietary industrial secrets were eventually mirrored by open-source hardware.. By providing the firmware and a bill of materials, the OpenCAL project is attempting to move volumetric printing from a scientific curiosity to a standard tool for engineers and hobbyists.
The missing data on material sterngth and resolution limits
Despite the speed of the 20-second space shuttle demo, several critical details remain unverified. the source does not specify the maximum build volume possible within the glass cylinder or how the resolution of an MP4-driven projection compares to the micron-level precision of high-end SLA printers. Furthermore, while the report claims a lack of mechanical weak points, there is no data provided on the long-term structural integrity or tensile strength of OpenCAL parts compared to traditional additive manufacturing.
