NASA engineers recently analyzed a 1.2% scale model of the SpaceX Super Heavy Version 3 rocket using specialized wind tunnels in California. These tests were designed to map the intense aerodynamic stresses the booster encounters during its atmospheric re-entry.
The V3 Shift: No Engine Skirts and Integrated Heat Shields
The Super Heavy Version 3 is not a mere iteration but a significant redesign of the first-stage booster. According to the report, this new version eliminates the engine section skirt and introduces individual engine shrouds. Furthermore, the design now features an integrated large-scale base heat shield and an integrated hot stage, which replaces the previous single-use protective interstage.
These structural modifications change how the vehicle interacts with the atmosphere. Because the physical profile of the SpaceX Starship system has shifted, NASA and SpaceX engineers required fresh data to determine how these specific changes affect the rocket's stability as it returns to the launch site for refurbishment and re-use .
Testing the Mach 2.5 Limit at NASA Ames

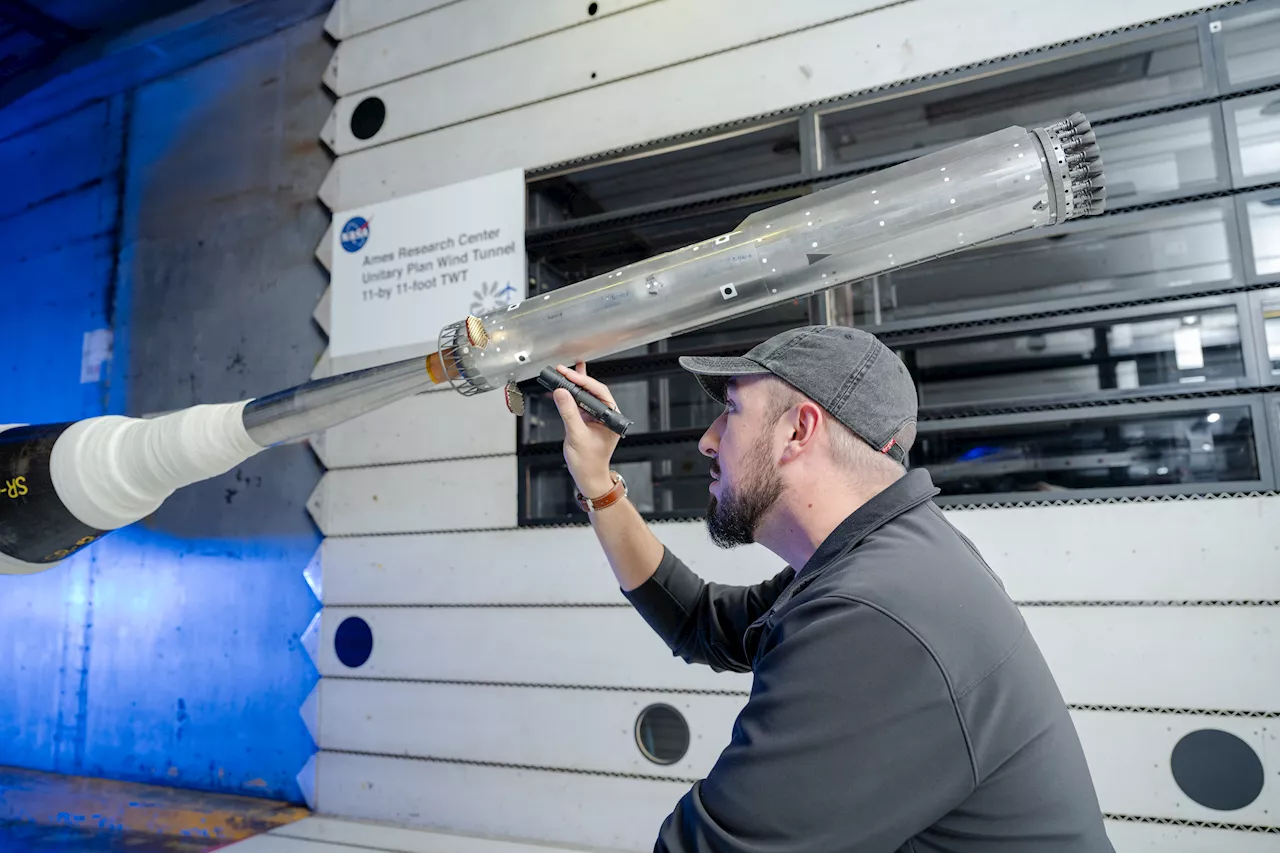

To simulate the chaos of re-entry, researchers at the NASA Ames Research Center in Silicon Valley utilized two distinct testing environments . The transonic tunnel subjects models to air speeds between Mach 0.2 and Mach 1.4, while the supersonic tunnel pushes speeds from Mach 1.55 up to Mach 2.5. As reported by the source, these tests allow engineers to distinguish between steady aerodynamic forces—the smooth flow of air during ascent—and unsteady forces.
Jayanta Panda, an unsteady aerodynamics expert at the NASA Ames Research Center, describes these unsteady forces as "buffeting," where air hits the rocket at unpredictable intervals. This phenomenon can trigger dangerous vibrations that threaten the structural integrity of the vehicle. By measuring these pressures, the team can provide critical inputs for the software that analyzes the physical loads the Super Heavy Version 3 must withstand.
The 2027 Deadline for the Artemis III Lunar Landing
This testing is a vital cog in the larger Artemis program, which aims to return humans to the Moon. The Super Heavy Version 3 is expected to serve as the foundation for the Starship Human Landing System (HLS), with the Artemis III demonstration mission targeted for 2027 and a crewed landing slated for 2028. Manish Mehta, a lead engineer at NASA's Marshall Space Flight Center, noted that the agency is leveraging its historical data from the Space Shuttle, the Orion spacecraft, and the Space Launch System (SLS) to accelerate this analysis.
The collaboration represents a hybrid approach to aerospace development. While SpaceX is known for rapid, iterative prototyping, NASA provides the rigorous, facility-based validation necessary for human-rated missions. This partnership is intended to build the foundation for an enduring lunar presence and eventual crewed missions to Mars.
Will the 1.2% Scale Model Predict Full-Size Buffeting?
Despite the sophistication of the NASA Ames Research Center facilities, a primary question remains: how accurately does a 1.2% scale model mirror the behavior of a massive, full-scale booster? While wind tunnel data is essential for guiding flight software, the transition from a miniature model to a skyscraper-sized rocket often reveals "scale effects" that only appear during actual flight tests.
Additionally,the report does not specify whether the recent tests identified any new vulnerabilities in the Version 3's integrated hot stage or if the results necessitated further design changes. while NASA confirms the data helps predict reactions to atmospheric forces, the specific findings regarding the "unsteady" pressure data remain undisclosed.
